Little Labs Redcloud | 8 Channel Attenuator
Little Labs Redcloud | 8 Channel Attenuator

Alternative Views:




Our Price: $390.00


Free Shipping
Availability: Special Order | Contact Us For Availability
Product Code: LL-REDCLD
Qty:

Description

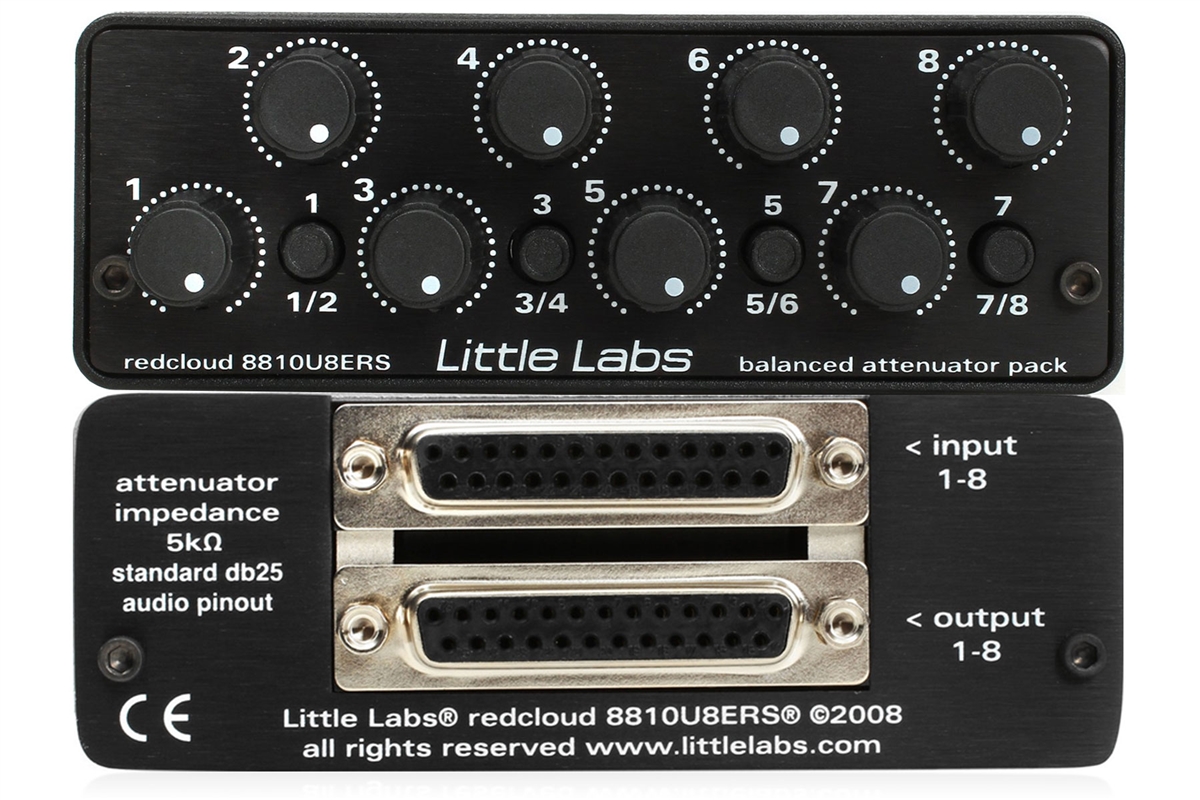

The REDCLOUD is eight mono or four stereo (button selectable) balanced attenuators in a quarter rack width, 1U high box with the standard dB25 pinout used with modular patch bays. These can be rack mounted to create 32 mono attenuators in a 1U rack space.

Best for:

Post mic pre-line level attenuation, pre-converters. Many mic pres sound better at higher gains and are not equipped with output-level trims. Any place you need attenuation or a simple volume control. Easy access input trims for converters are hugely useful in a modern studio without a mixing console.

Circuit topology:

It is completely passive and utilizes 5k ohm logarithmic attenuators (so they will work as volume controls) with 30 indented positions to easily reset. 5k ohm was chosen because it's easy to drive and can still run a decent distance without signal loss. The potentiometers used are 4-gang, so when stereo is selected, both balanced signals are on the same pot to track left to right properly.

Product Features:

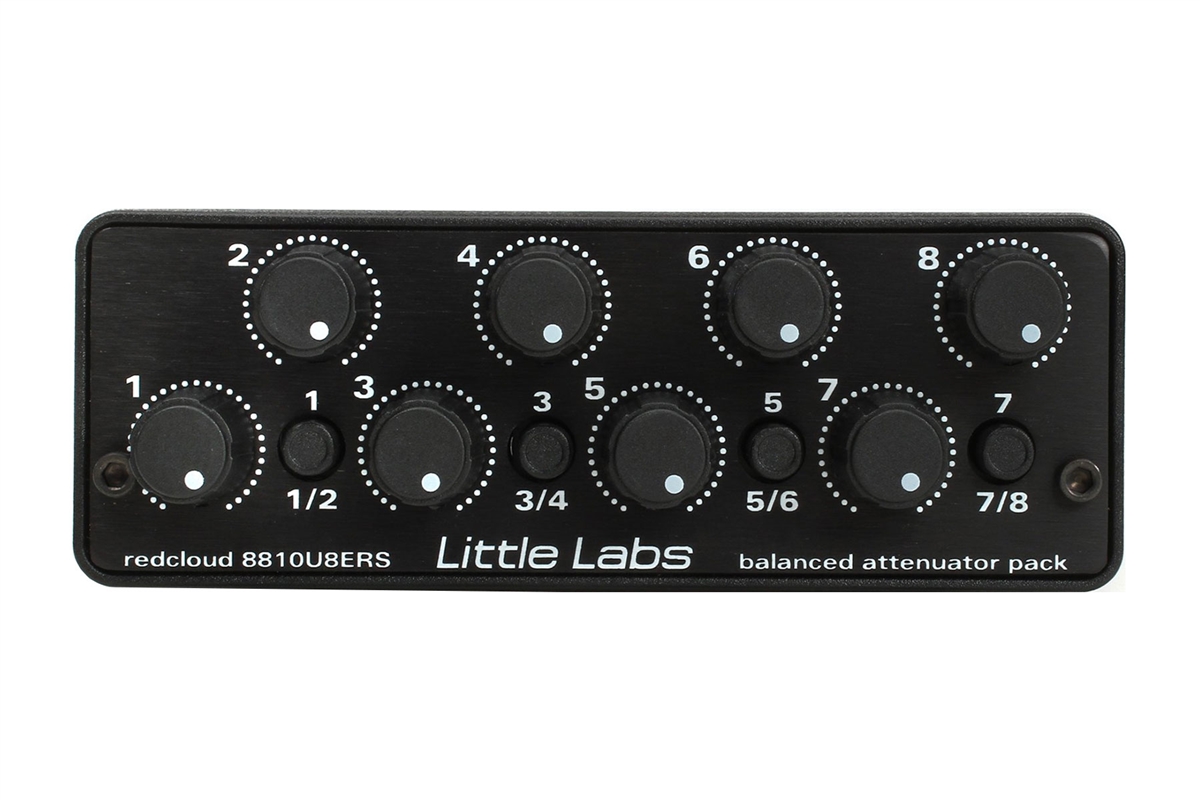

  • 8 rotary balanced faders

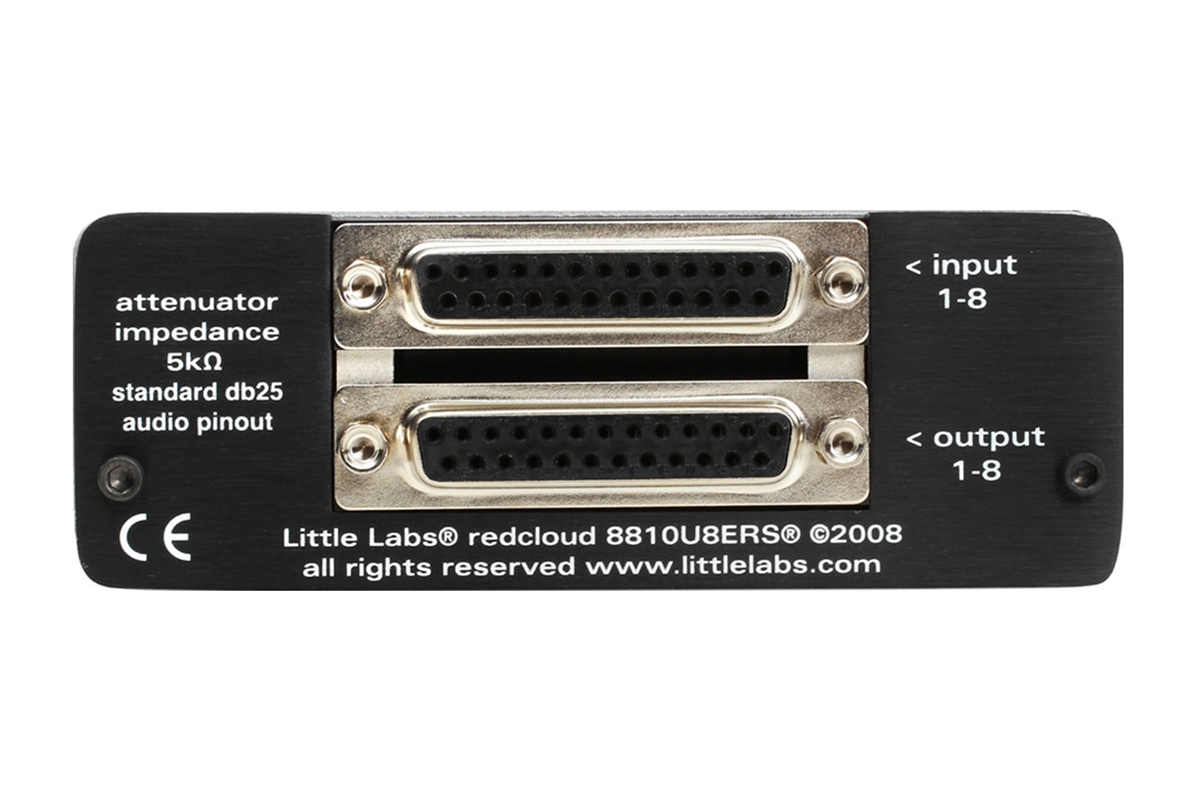

  • DB25 standard analog I/O
  • Passive 5k ohm impedance
  • Pre/Post mic pre attenuation
  • Stepped volume controls
  • Up to 32 faders in a 1RU rack

    •
