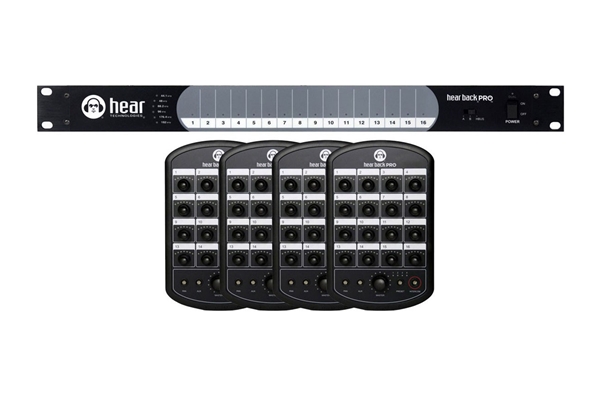

Hear Technologies Hear Back PRO | 4-Pack Personal Mixing System (Analog Input)

Hear Technologies Hear Back PRO | 4-Pack Personal Mixing System (Analog Input)

Alternative Views:






Retail Price: $6,690.00
Our Price: $5,355.00


Free Shipping
Availability: Ships Directly from Hear Technologies
Product Code: HEARTECH-PROHB4
Qty:

Description

  • 1 x Hear Back PRO Hub
  • 4 x Hear Back PRO Mixers
  • Includes Cat6 and DB25 Cables
  • 16 Channels of Analog I/O
  • Up to 192 kHz Sampling Rate
  • Selectable Per-Channel Input Pads
  • Low System Latency
  • Per-Channel Signal Metering
  • Modular, Expandable Design
  • Aux Input & Two Headphone Outs Per Mixer

  • The Hear Technologies Hear Back PRO 4-Pack is a personal mixing system offering independent multi-channel mixing for up to four performers in the studio or on stage. It includes one Hear Back PRO Hub, four Hear Back PRO Mixers, four 50’ Cat6 cables, and two DB25 to 1/4" TRS analog breakout cables. 24-bit A/D and D/A converters deliver detailed audio with extended dynamic range and resolution up to 192 kHz. The low system latency of less than 0.25 milliseconds ensures there will be no monitoring delay.

    Artists can make their own headphone mixes from up to 16 analog inputs and a mono mic or stereo aux input, blending levels and pans as they please. Each mixer offers a 3.5mm and 1/4" TRS headphone output to accommodate different headphones. Per-channel input metering on the Hear Back PRO Hub provides clear indication of signal presence and peaking status. Each channel offers a -10 dB pad to minimize distortion for hot signals. If mixing stations are needed for more than four artists, the system is easily expandable via additional Hear Back PRO Mixers (available separately) and other interface cards.

    • Mix up to 16 channels via Cat6e input and two channels via stereo aux input
    • 3.5mm stereo aux input for click track or mix from other modules
    • XLR 3-pin mic input with 15 VDC phantom power
    • System latency less than 0.25 ms
    • Mono inputs can be linked for stereo operation
    • Two 1/4" balanced line outputs for connection external monitors or other personal mixers
    • Integrated intercom allows communication to anyone with a Hear Back PRO Mixer
    • Store and recall up to four presets for quick mixer configuration
    • Connects to Hear Back PRO Hub (available separately) via Cat6e

    For more information on this or any other Hear Technologies product, visit www.heartechnologies.com.
