16-channel bi-directional analog interface for Dante networks, with additional two-channel AES3 I/O
Precision A-D and D-A conversion with 119 dB dynamic range, flat from 20 Hz - 20 kHz (0.15 dB)
Individual input/output channel level control using RedNet Control software
Dual PSUs with locking IEC inlets
Dual locking etherCON connectors for Primary and Secondary network connections
Power supply and ethernet redundancy with auto switchover in case of failure

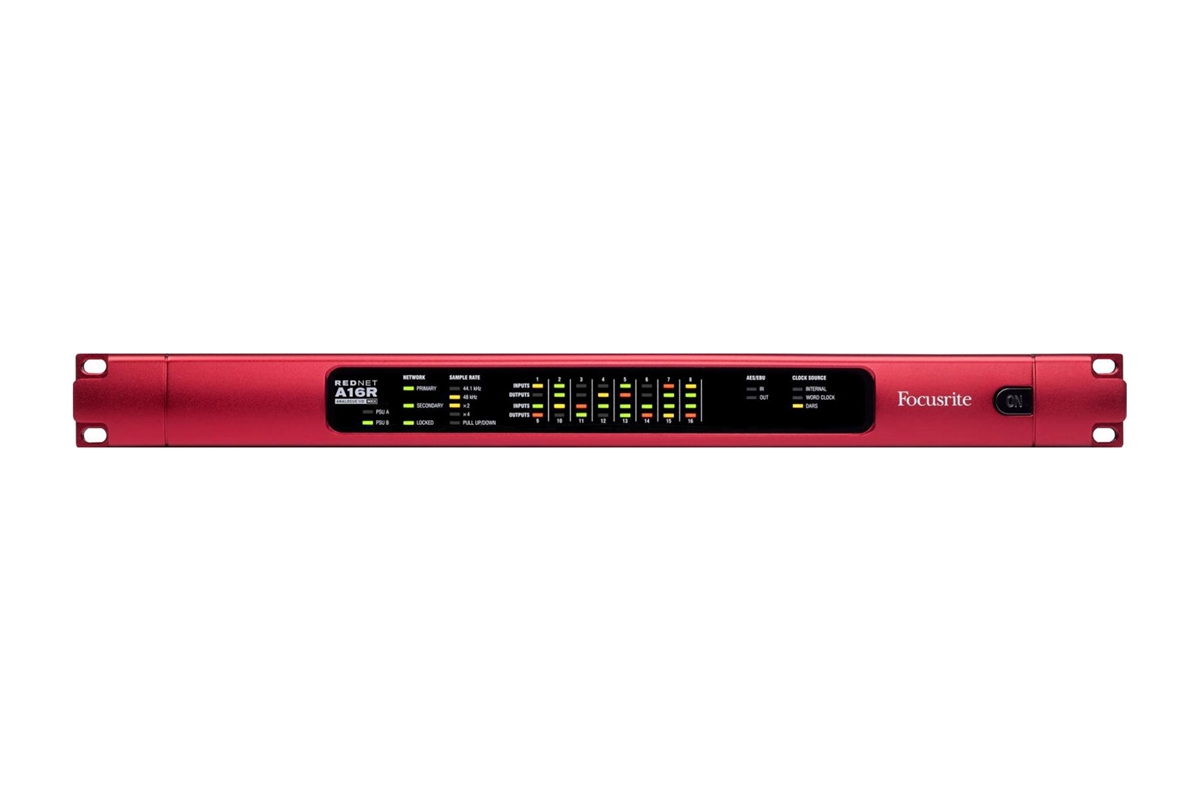

Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status
Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate
Analog I/O on four AES59 standard DB25 connectors
Digital I/O on a pair of XLR connectors (AES3)

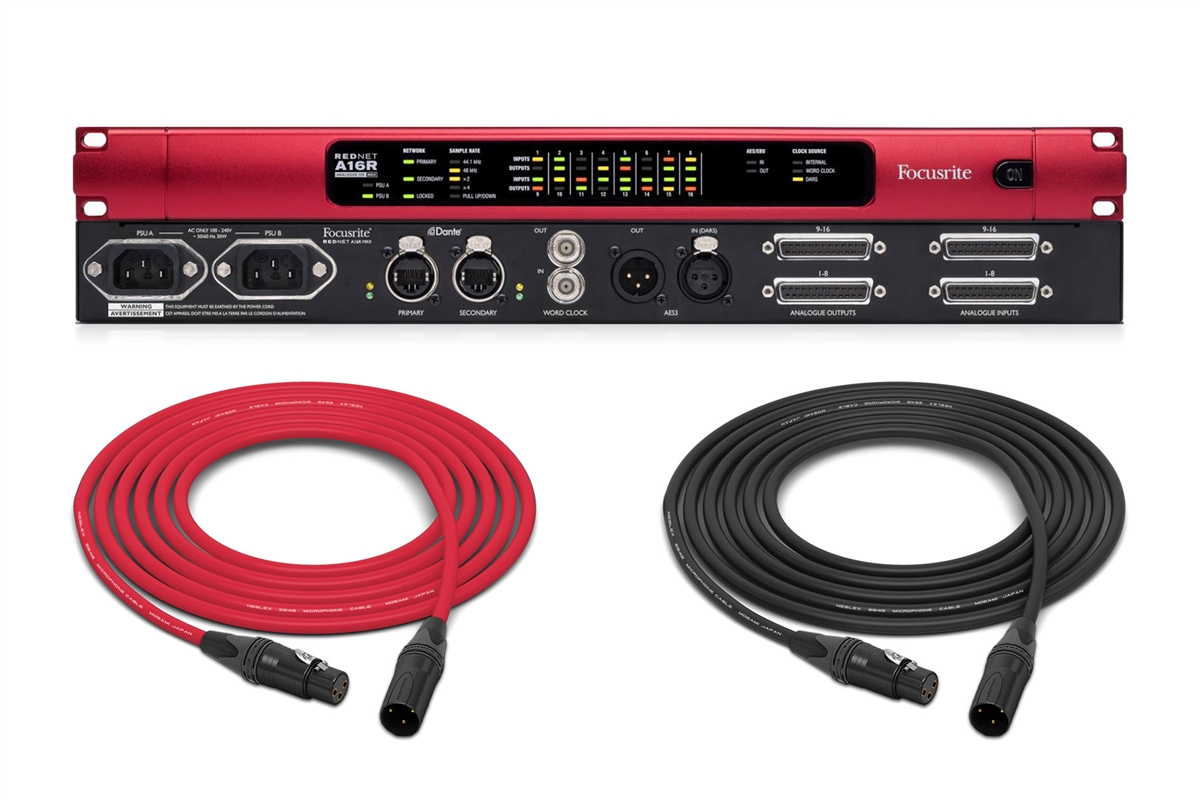

The Focusrite RedNet A16R MkII is a 16-channel analog Interface for Dante networks, with two channels of AES3 I/O. Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

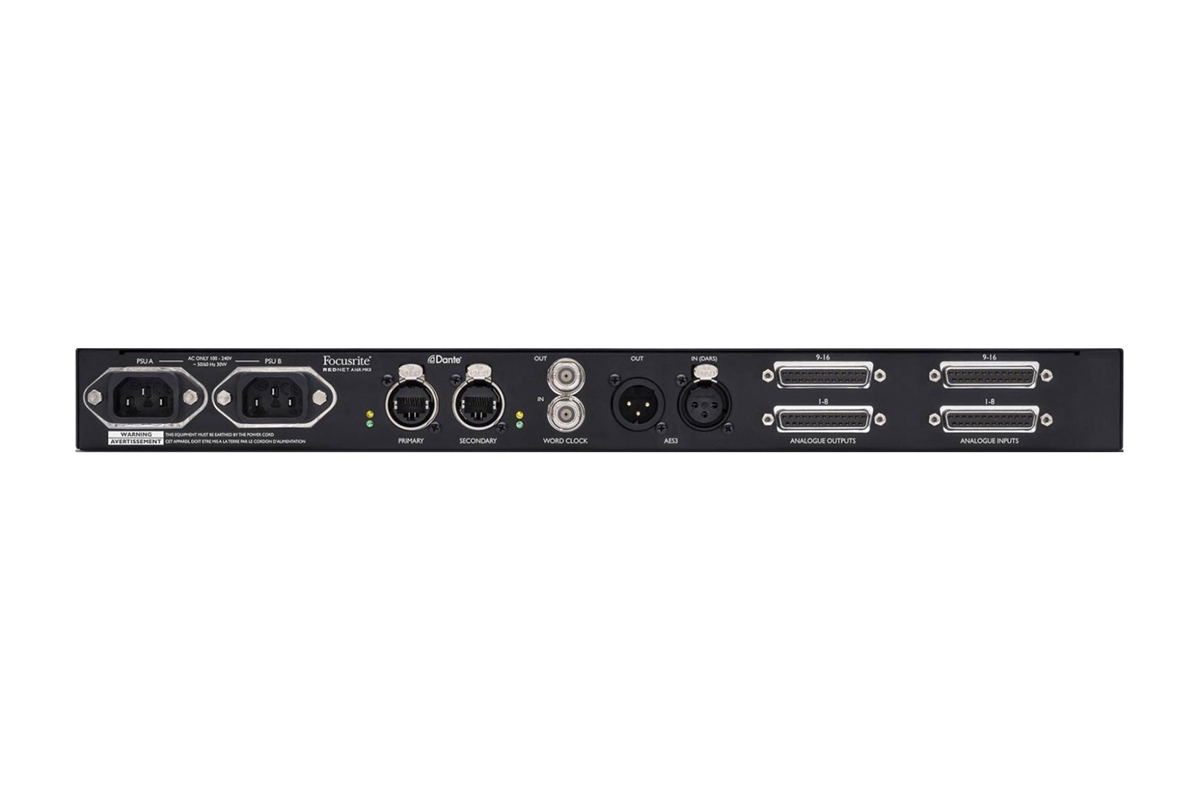

Analog inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, synchronized to external input. RedNet A16R MkII is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.
