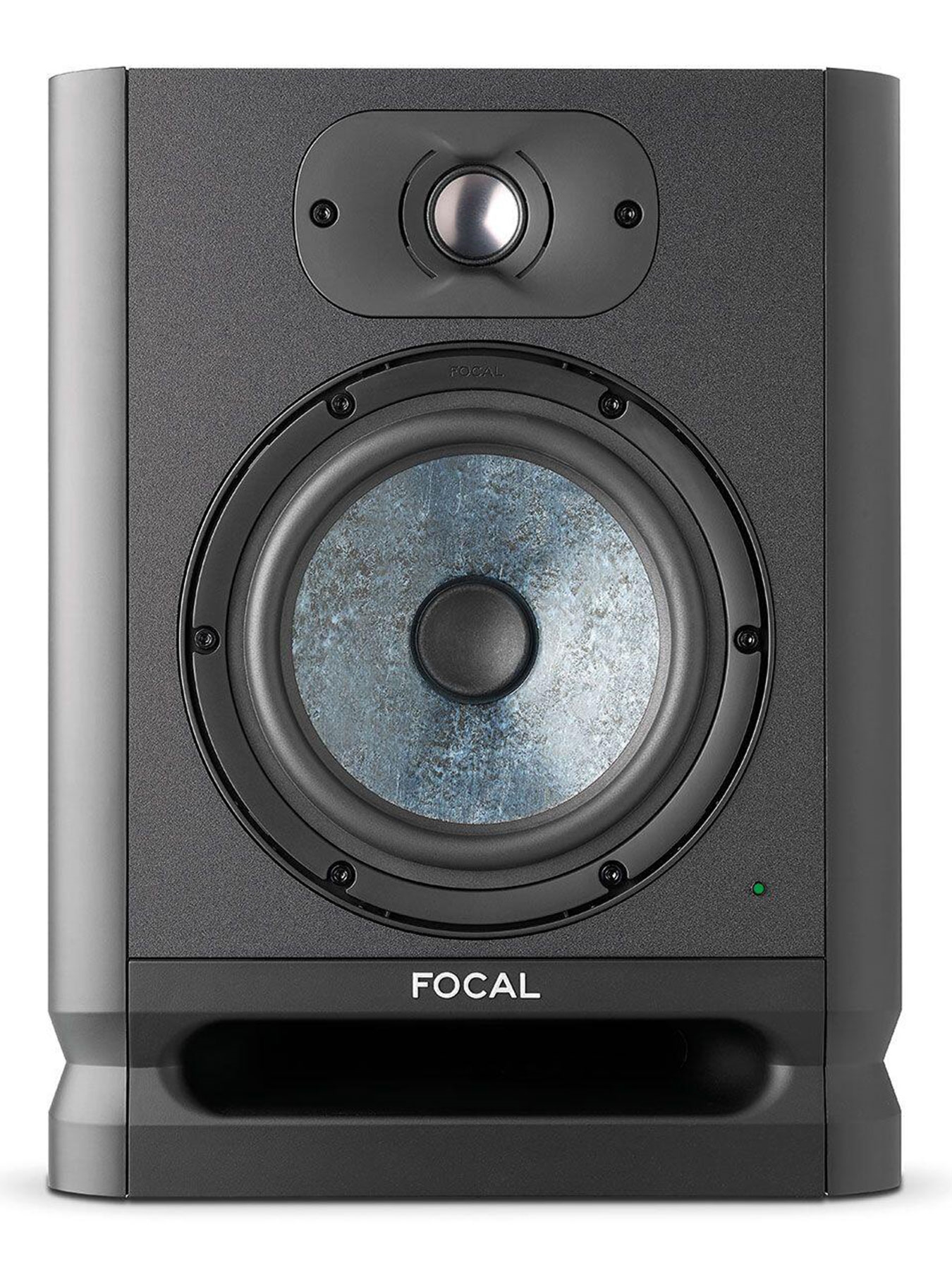

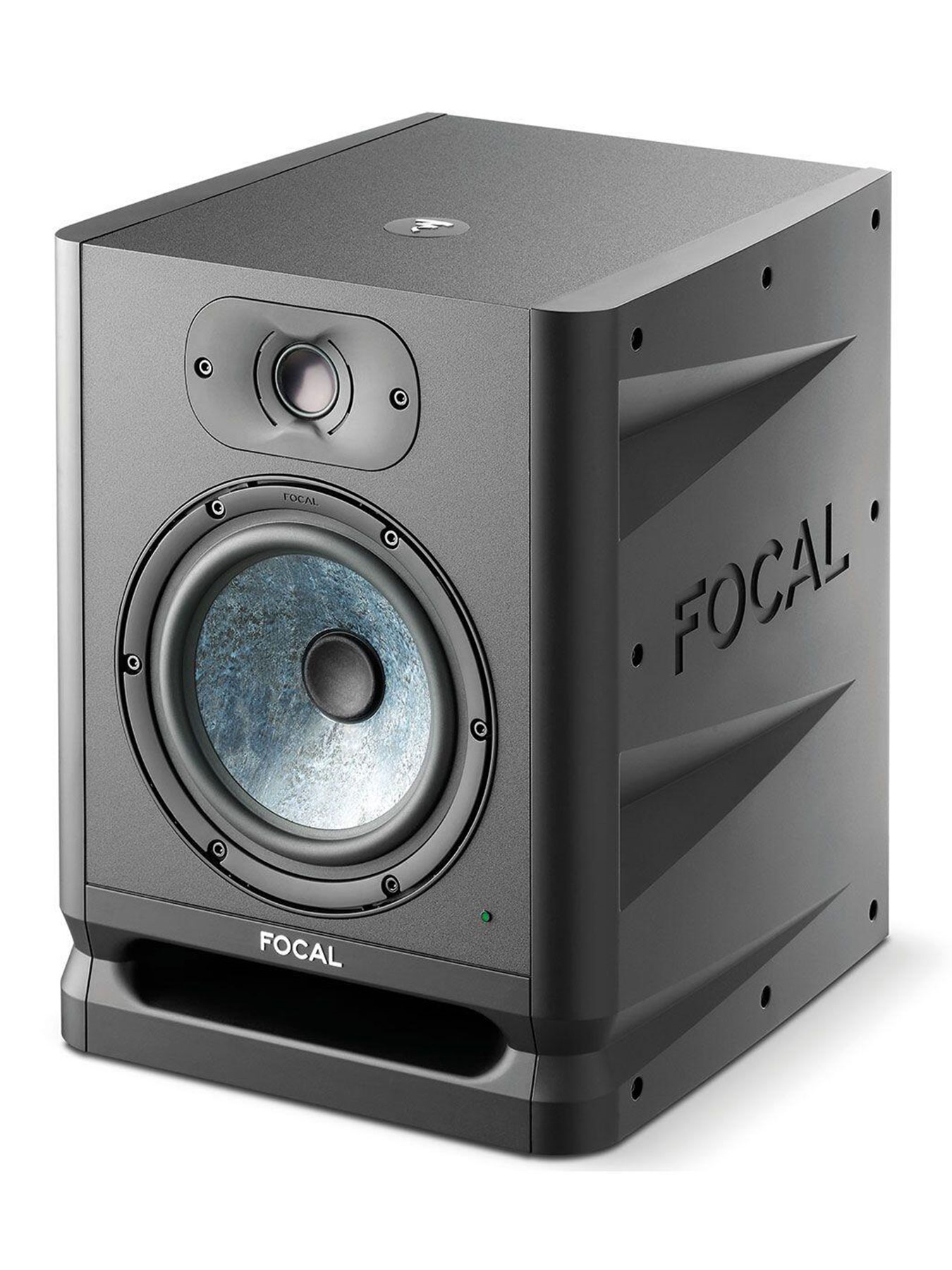

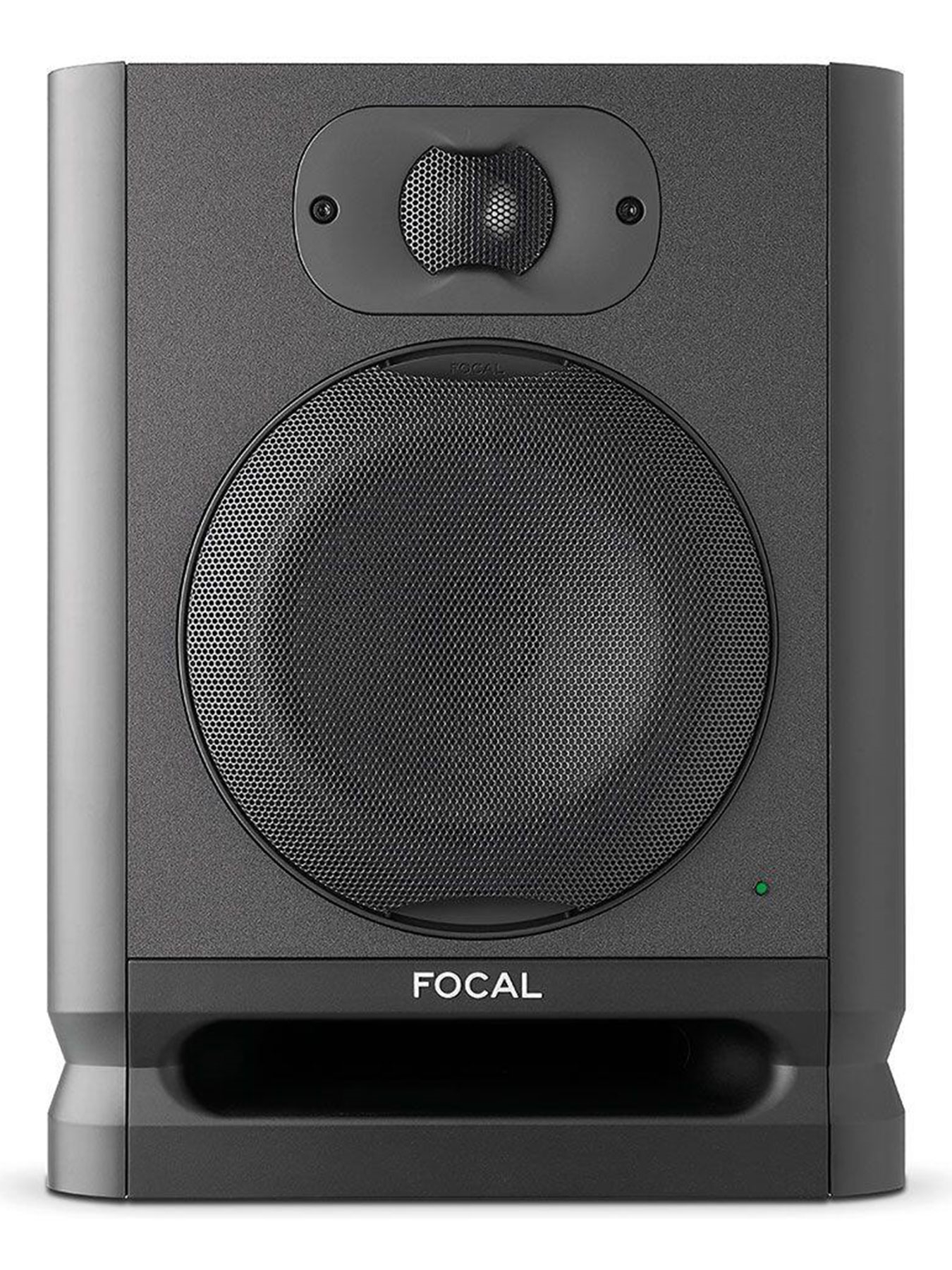

The Focal Alpha 65 Evo features a 1" (25mm) Aluminium tweeter and a 6.5" (16.5cm) woofer with Slatefiber cone developed and manufactured in Focal's workshops in France. This monitor features excellent dynamics and neutrality in its tonal balance. Thanks to new technologies and features, Alpha 50 Evo is an incredibly versatile powered studio monitor.
Product Features:
- Excellent dynamics
- Wide dispersion enabling the same sound to be maintained throughout the entire room
- Slatefiber cone manufactured in France
- Identical tonal balance at both low and high volume
- Connect up to 3 audio sources
- Inserts for wall fastening
- Automatic disengageable standby mode
- Protective grills included
Mounting Options
Precision by Triad-Orbit Mounting Solution
Immersive Sound Speaker Mount System offers many options for mounting onto walls and ceilings with Triad-Orbit Technology. This uniquely designed patent-pending speaker mounting system allows the installer to meet the critical demands of Dolby Atmos and immersive sound installations providing unparalleled flexibility in mounting and alignment options, saving time in installation room tuning and laser alignments.
(1) SM-SW1 + WM1 Wall Mount + FP Focal Adapter:
The SM-SW1 is the strongest, most precise speaker mount. With the ability to lock speaker tilt in 15-degree increments and pan on 30-degree increments, the SM-SW1 Speaker Mount is perfect for heavier speakers and critical listening spaces like Dolby Atmos mixing rooms.
The Precision SM-FP by Triad-Orbit Focal speaker plate is designed to accommodate Focal two hole speakers with a range of 35mm to 105mm. Its “T” shape allows the SM-SW1 to avoid the speaker’s I/O, switches, and knobs, and it features four SM-SW1 M8 holes for both vertical and horizontal orientation. This plate is compatible with various models, including Alpha 50 Evo, Alpha 65 Evo, Shape 40, Shape 50, Shape 65, and Shape Twin.
(2) SM-UM1 | Direct Mount:
The most affordable speaker mount. Its universal face plate works with many speakers under 25 pounds. With the ability to adjust pan and tilt and lock positioning with geared fittings, the SM-UM1 is perfect for Dolby Atmos rooms where lighter speakers are being used.
(3) SM-UM1 + WM1 Wall Mount:
The WM1 is optional in the UM1 System, however, it’s highly recommended to improve your installation workflow.
If using the WM1, press it against the wall at your desired location and mark the mounting holes with a pencil. Then pre-drill into studs or place your anchors. Attach the WM1 to your wall.
If mounting the UM1 directly to the wall, place it in the desired location and mark the mounting holes. Pre-drill into studs or place anchors as with WM1, but mount it to the wall after connecting your speaker to the system.
IsoAcoustics Mounting Solutions
Featuring IsoAcoustics award winning isolation technology, V120 Mount is a studio monitor ceiling and wall mount that decouples studio monitors from wall and ceiling structures, mitigating structure borne vibrations from exciting the supporting surfaces.
The V120 isolation mount is adaptable to wall mount and ceiling structures and is designed to be compatible with many studio monitors weighing up to 40lbs (18.1kg).
(1) V120 Mount w/ V120 T-Adapter + C-Bracket:
Improved Spatial Openness and Clarity for Wall & Ceiling Mounted Pro Audio Speakers.
The C-Bracket will allow the studio monitors to be focused downwards, or tilted up to 45 upwards. If you need to tilt your studio monitors higher, then please use the L-Bracket instead of the C-Bracket.
(2) V120 Mount w/ V120 T-Adapter + L-Bracket:
The L-Bracket will allow the studio monitor to be focused horizontally, or tilt up to 45 degrees downwards. The C-Bracket will allow the studio monitors to be focused downwards, or tilted up to 45 upwards. If you need to tilt your studio monitors lower, then please use the C-Bracket instead of the L-Bracket.
.jpeg)
(3) ISO-Puck Mini (Pack of 8):
The ISO-Puck mini can isolate a speaker or monitor that is up to 18 lbs (8.2 kg) when using 3 units, or up to 24 lbs (10.9 kg) using 4 units. The low-profile design makes the ISO-PUCK series the ideal solution on meter bridges, on top of floor stands, consoles, desktops, millwork, or soffit mounted. The ISO-PUCK upper flange “suction cup” design adheres to the underside of the cabinet making the upper isolator live with the speaker, while the lower isolator anchors to the supporting surface. All the energy is managed within the core of the ISO-PUCK isolators. The IsoAcoustics patented isolation design provides improved stereo imaging. The isolators are biased to keep all energy in alignment with the listening position, resulting in greater clarity and focus.
(4) ISO-200 Speaker Stands (Pair):
The ISO-200 isolation stand stand is 7.8-Inch (200mm) wide x 10-Inch (254mm) depth and is rated for monitors weighing up to 60 lbs (27.2 kg) each. Offering 14 variations of height and tilt, the ISO-200 will help you optimize the placement of your monitors and focus your tweeters to ear level. The IsoAcoustics patented isolation design provides improved stereo imaging. The isolators are biased to keep all energy in alignment with the listening position, resulting in greater clarity and focus.
PERFORMANCE & VERSATILITY
Dedicated to music creation and all reproduction, the Alpha 50 Evo and Alpha 65 Evo guarantee excellent sound coherence, no matter where you’re listening. For renewed performance, Focal has chosen an aluminium inverted dome tweeter to ensure vast sound dispersion, as well as the Slatefiber cone. This recycled carbon cone, produced exclusively by the French brand at its Saint-Étienne workshops, has been chosen for its neutrality and dynamics. Focal is constantly renewing its offering, drawing on its acoustics expertise of over 40 years and its innovation capacity. This is demonstrated by the new large laminar port, which limits distortion noise.
NEW FEATURES

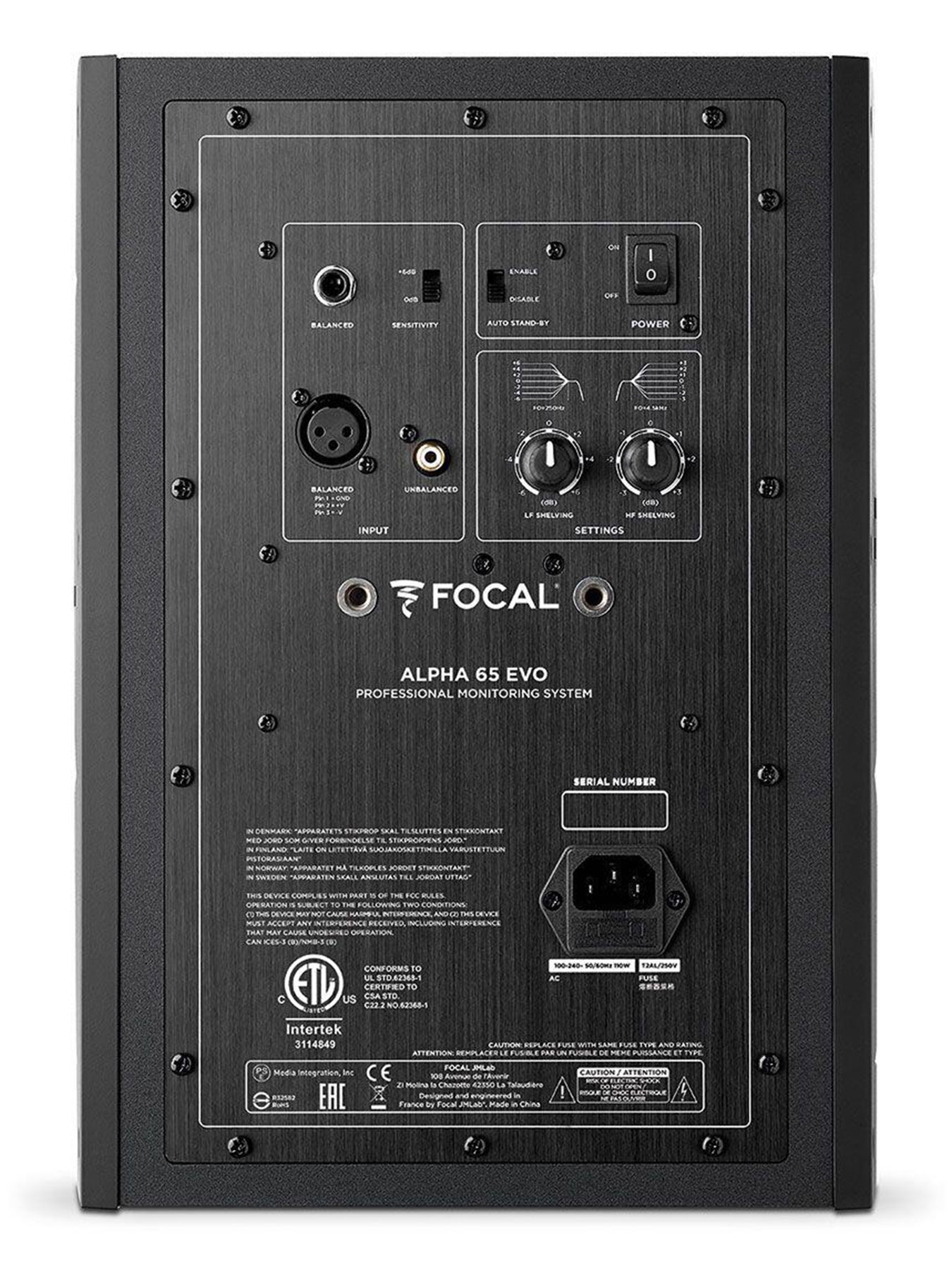

Evo for Evolution. The Alpha Evo monitors boast a new 1/4" (6.35mm) TRS jack input—in addition to the XLR and RCA analog inputs—, a disengageable automatic stand-by mode and inserts for wall and ceiling fastening: a truly versatile range (Mix, Mastering, DJ, Broadcast). In terms of amplification, the monitors are each equipped with two Class D amplifiers. The high current capacity of these allows full control of the signal dynamics. It also allows high volumes to be reached without distortion. Each of the loudspeakers picks up the smallest details in the mix, across all musical styles.
DESIGN AND CABINET-MAKING
The monitors feature a 5/8" (15mm) -thick MDF cabinet, and incorporate internal braces to ensure it is highly robust, even at the highest levels of acoustic pressure. The bass-reflex design has been used to ensure easy acoustic integration in even the most cramped spaces.
In terms of aesthetics, the traditional cube monitor shape makes way for rounded contours. The side panels create a sophisticated, robust and modern design which contributes to excellent acoustics and a unique and harmonious signature across the collections.
For more information on this or any other Focal product, visit www.focal.com.
