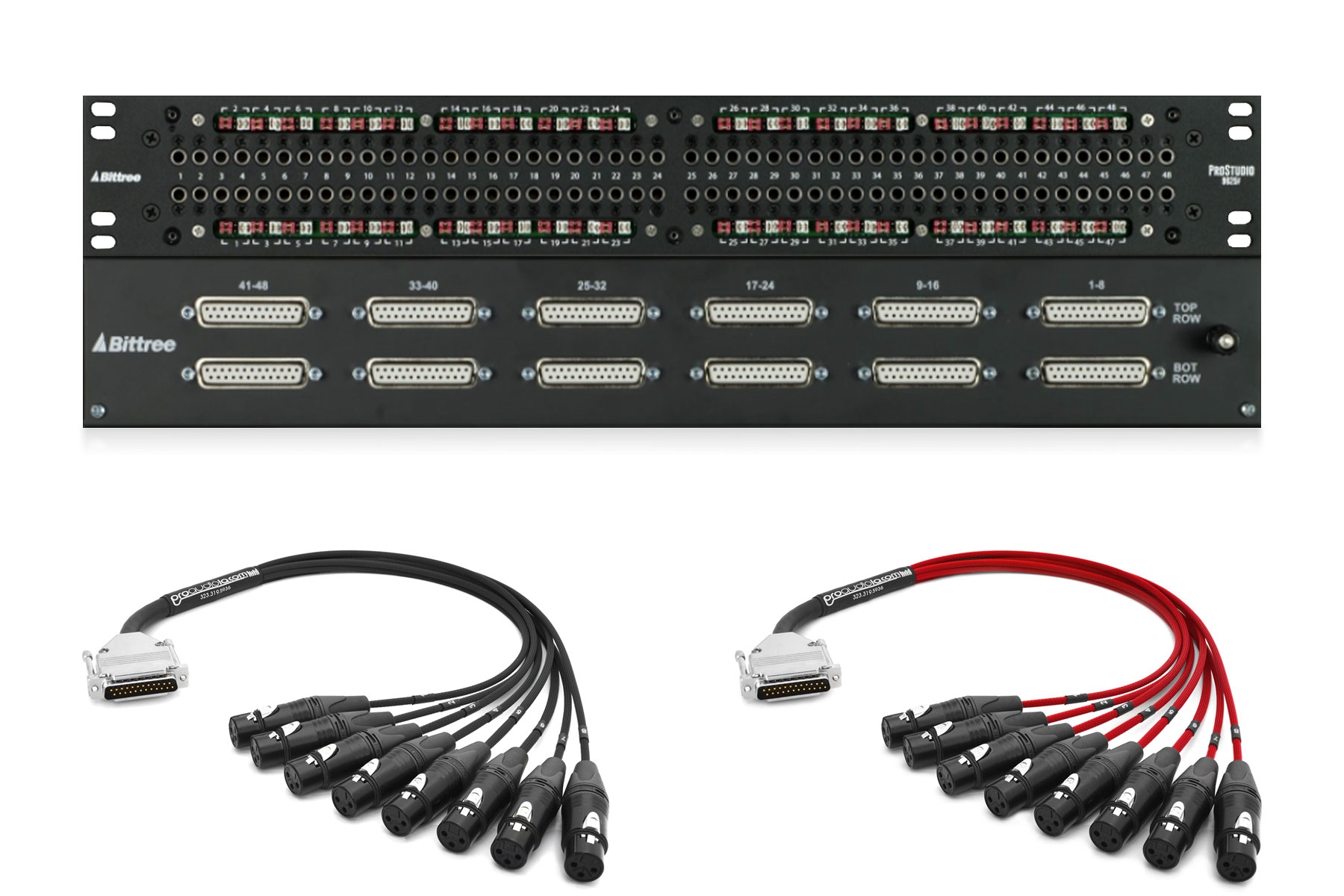

Configure Your Own Bittree ProStudio PS9625f | 2x48 TT Audio Patchbay w/ Custom Mogami & Neutrik Gold Cabling
Configure Your Own Bittree ProStudio PS9625f | 2x48 TT Audio Patchbay w/ Custom Mogami & Neutrik Gold Cabling

Alternative Views:




Our Price: $1,349.10



Free Shipping
Availability: Click HERE for Lead Times
Product Code: BITTREE-PS96DB25F-MOGAMI

Cable 1 -- Position A1





< Connected To
Cable 2 -- Position B1





< Connected To
Cable 3 -- Position A2





< Connected To
Cable 4 -- Position B2





< Connected To
Cable 5 -- Position A3





< Connected To
Cable 6 -- Position B3





< Connected To
Cable 7 -- Position A4





< Connected To
Cable 8 -- Position B4





< Connected To
Cable 9 -- Position A5





< Connected To
Cable 10 -- Position B5





< Connected To
Cable 11 -- Position A6





< Connected To
Cable 12 -- Position B6





< Connected To

Qty:
Description

  • Customize Up To 12 Mogami DB25 Snakes in Various Configurations & Lengths
  • Front Selectable TT (Bantam) Audio Patchbay, 1.5RU Height, DB25 Rear Interface
  • High-density 2x48 jack configuration with mono (even) jack spacing
  • DB25 rear interface (12 x 25-pin female DB25 connectors) - Protools, Tascam DB25 Pinout
  • Selectable normalling and grounding
    • Ships full normal with bussed grounds
  • Circuits can be easily changed via shunts under both designation strips
  • Normalling
    • circuits can be set to full normal, half normal or non-normal
    • Grounding – can be set to bussed, isolated, or looped
  • Analog and Digital 110 ohm compatible
  • 1-48 left-to-right numbering on front panel for easy circuit identification
  • 2 x DS800-10 designation strips, "Over/Under" orientation
  • 7" (17.78 cm) deep fully enclosed chassis
  • RoHS Compliance

    • For more information on this or any other Bittree product, visit www.bittree.com.
